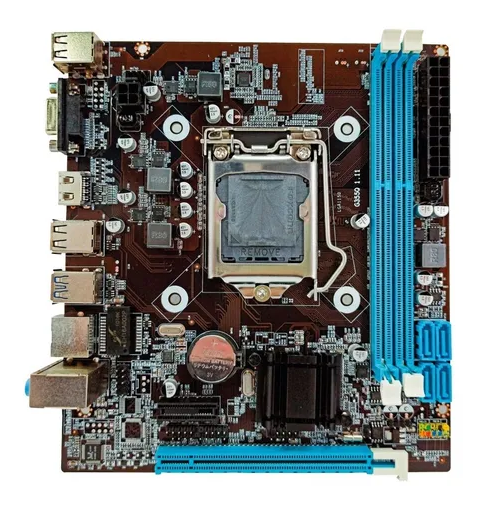

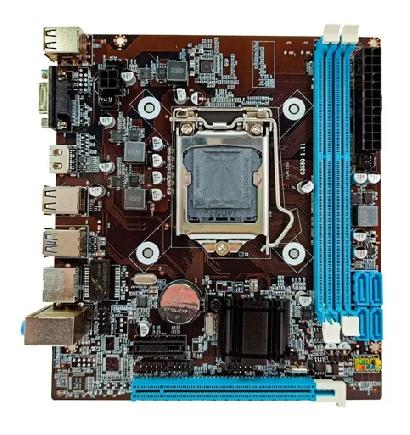

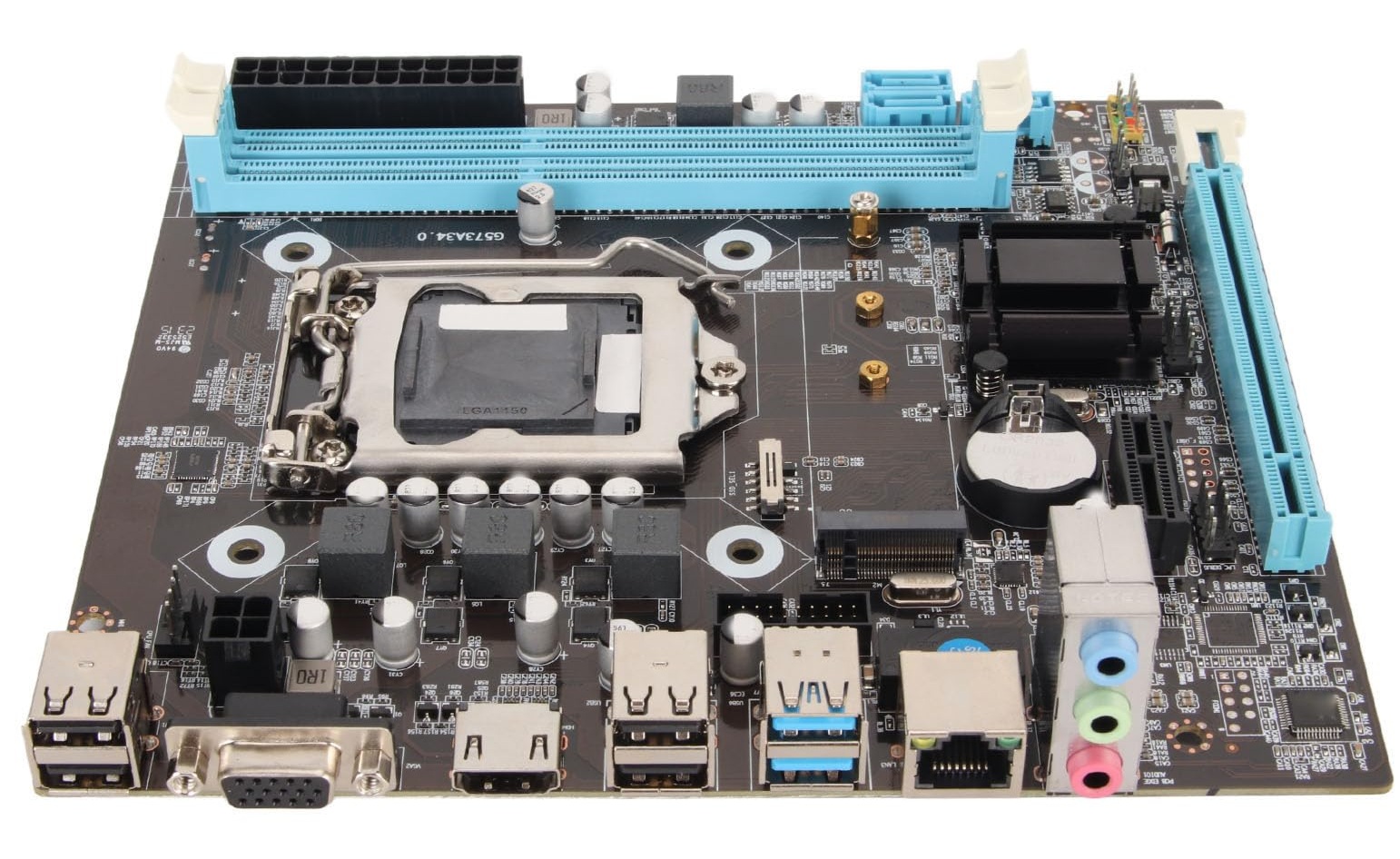

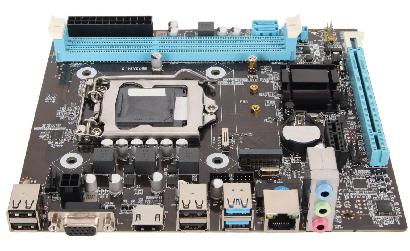

Mainboard H81 CPU Support: Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th 5th generation multi-core processors, Chipset: Intel H81, Memory: Dual Channel DDR3 1066/1333/1600MHz, DIMM: 2 x Memory Slots (Max. up to 8GB each) en marcas HELTCH ARTEK FOXCON
Comparte este producto en tus Redes Sociales
| CPU Support | Support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th generation multi-core processors | |
| Chipset | Intel H81 Chipset | |
| On-Board Graphics | Integrated Graphics Processor | |
| Memory | Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory | |
| DIMM | 2 x Memory Slots (Max. up to 8GB each) | |
| LAN | Onboard Realtek® RTL8105E/8111E Gigabit 100/1000 Mbps (Optional) | |
| Audio | Onboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack | |
| SATA | 3 x SATA, 1xM.2 supports NVME+NGFF | |
| Back Panel I/O Ports | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Ourt / Mic in) | |
| ON-Board Pinheaders /Connectors | 1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports 1 x Front Panel Audio pinheader | |
| Slots | 1 x PCI Express x16 slot, | |
| BIOS | UEFI BIOS | |
| Form Factor | Micro-ATX (19 X 17 cm) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | Todas las
especificaciones están sujetas a cambios sin previo aviso. El color de la placa de circuito impreso
(PCB) y las versiones del software incluido están sujetos a cambios sin previo
aviso. Las marcas y los nombres de los productos mencionados son marcas
comerciales de sus respectivas empresas. |
